30kw/40kva electric silent generator for home use price diesel generator set

FOB Reference Price:Get Latest Price
US $2,800-3,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VLAIS
Model Number:
VL-40
Output Type:
AC Single Phase
Speed:
1500rpm
Frequency:
50/60HZ
Rated Power:
30kw
Rated Voltage:
220V/380V
Rated Current:
/
Engine:
4100D
Cylinder number:
4
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard package.
Port
Huangpu
Lead Time :
within 7-12 days after payment
Product description
VL-40 30kw/40kva diesel generator
Rated output
30kw
Excitation
AVR
Max.output
40kva
Engine model
4100D
Rated voltage
230/400V
Cyliner number
4
Rated frequency
50/60Hz
Bore*stroke
100*115mm
Rated current
43.3A
Rated rotation speed
1500rpm
Power factor
0.8
Insulation grade
H
Fuel consumption
230g/kw.h
Compression ratio
19:1
Net weight
1100kg
Dimensions
2000*900*1400mm

Technical Specification
* All copper coil, steady running.
* Easier and more convenient electric starter.
* New AVR(Automatic Voltage Regulator)stablizes the output power.
* Low oil level alarming system will automatically stop the generator when lube oil is less than the set value.

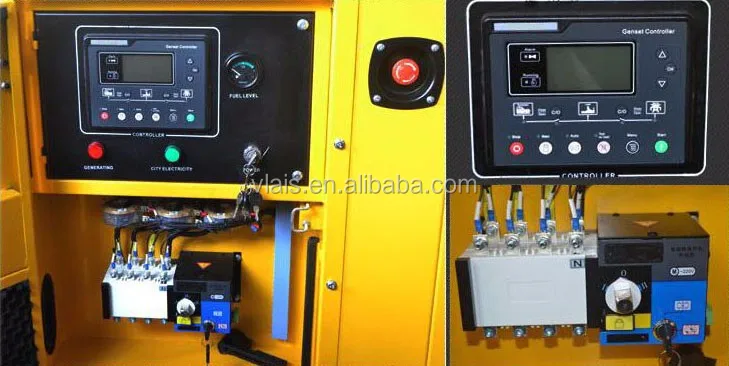

* As on-an automatic equipment for main/standby transfer power supply. ATS and diesel generator Composed to be emergency power system when the main Failure occurred. It is widely used in bank, hospital, telecommunication,hotel etc..

Product detailed

Water cooled radiator

The fan and safety protection cover are made of a closed whole water tank.

The core consists of a staggered arrangement of heat dissipator and heat dissipation tube. The heat dissipation effect is excellent.

Safety shield

Black safety shield, beautiful and generous.

Prevent sundries entering the water tank to damage the fan and the unit.

Large capacity tank base

The structure of the base filling box device, the capacity of the tank can meet the normal operation of the unit for more than 10 hours, and the design of oil level display, gas filling and other devices.

Company Information
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2000*900*1400mm
Weight
1000kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
