China manufacturer silent 80kw 100kva diesel generator with ATS price

FOB Reference Price:Get Latest Price
US $6,100-6,500 / Sets | 1 Set/Sets (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 5 - 10 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: Above 10
Research & Design >
  • No.of R&D Engineer: Less than 5 People
  • Production Certification: 2
  • Trademark: 1
Trade Capacity >
  • Export Mode: Using an agent
  • Export Percentage: 95.00%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VLAIS
Model Number:
VL-80
Output Type:
AC Three Phase
Speed:
1500/1800rpm
Frequency:
50/60HZ
Rated Power:
80kw
Rated Voltage:
230/400V
Rated Current:
144A
Engine:
6105ZD
Cylinder number:
6
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package.
Port
Huangpu
Lead Time :
within 7-12 days after payment
Product description

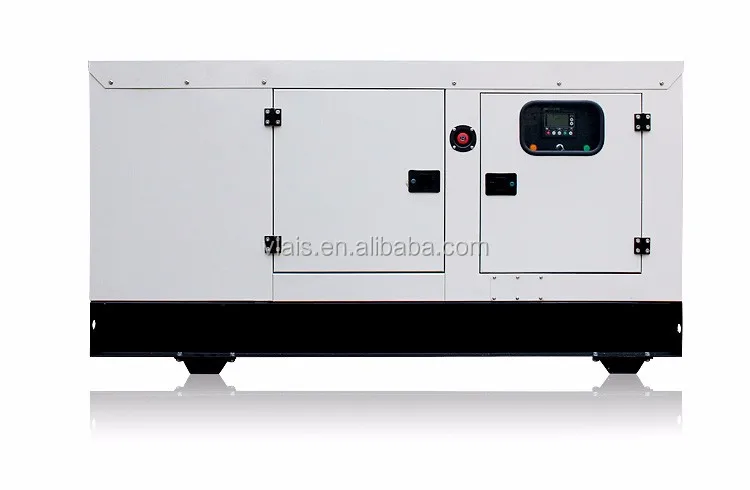

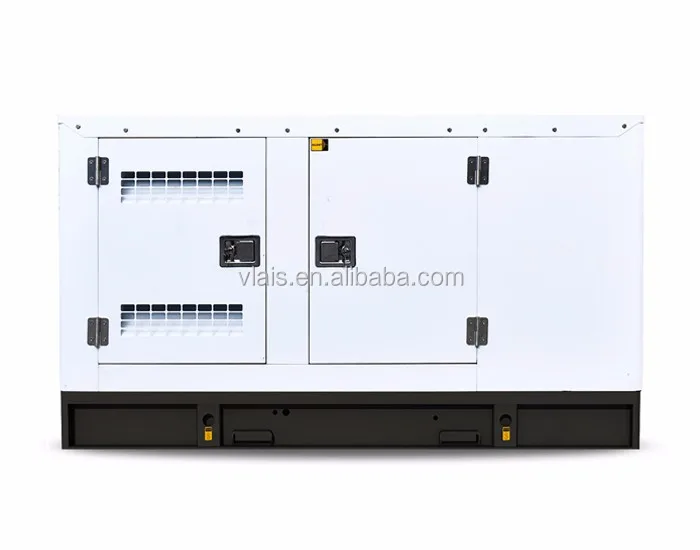

VL-80 80kw/100kva diesel generator
Rated output
80kw
Excitation
AVR
Max.output
100kva
Engine model
6105ZD
Rated voltage
230/400V
Cyliner number
6
Rated frequency
50/60Hz
Bore*stroke
105*125mm
Rated current
144A
Rated rotation speed
1500rpm
Power factor
0.8
Insulation grade
H
Fuel consumption
210g/kw.h
Compression ratio
16:1
Net weight
2350kg
Dimensions
3000*1200*1780mm

Technical Specification
* All copper coil, steady running.
* Easier and more convenient electric starter.
* New AVR(Automatic Voltage Regulator)stablizes the output power.
* Low oil level alarming system will automatically stop the generator when lube oil is less than the set value.
* As on-an automatic equipment for main/standby transfer power supply. ATS and diesel generator Composed to be emergency power system when the main Failure occurred. It is widely used in bank, hospital, telecommunication,hotel etc..

Product detailed

Dual power switch

It has good safety performance, high automation, high reliability and service life of more than 8000 times.

Adopt zero-crossing technology, mechanical interlocking, and electrical interlocking technology.

It can realize automation, electric remote control, emergency manual control.
No external control components are required.

Large capacity tank base

The structure of the base filling box device, the capacity of the tank can meet the normal operation of the unit for more than 10 hours, and the design of oil level display, gas filling and other devices.

Safety shield

Black safety shield, beautiful and generous.

Prevent sundries entering the water tank to damage the fan and the unit.

Water cooled radiator

The fan and safety protection cover are made of a closed whole water tank.

The core consists of a staggered arrangement of heat dissipator and heat dissipation tube. The heat dissipation effect is excellent.

Company Information
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2000*900*1400mm
Weight
1000kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
