50kw/62.5kva Rated Power Chinese engine 50kw silent diesel generator price

  • 2 - 4 Sets
    $3,650.00
  • >=5 Sets
    $3,453.00
Rated Power:
50kw
Output Type:
AC Three Phase
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 12 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
VLAIS
Model Number:
KDE-50T, KDE-50T
Rated Voltage:
120V/230V/400V
Rated Current:
90.2A
Speed:
1500/1800rpm
Frequency:
50/60HZ
Engine Model:
4100ZD
Cylinder number:
4
Rated Rotation Speed:
1500rpm
Starting system:
Electric strater
Exicitation mode:
Self-excitation and cinstant voltage
Bore*Stroke:
100*115mm
Fuel consumption at full load:
210(g/kw.h)
Certificate:
CE
Dimension(L*W*H):
2200*1000*1400mm
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden package
Port
Huangpu port Guangzhou
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 12 To be negotiated

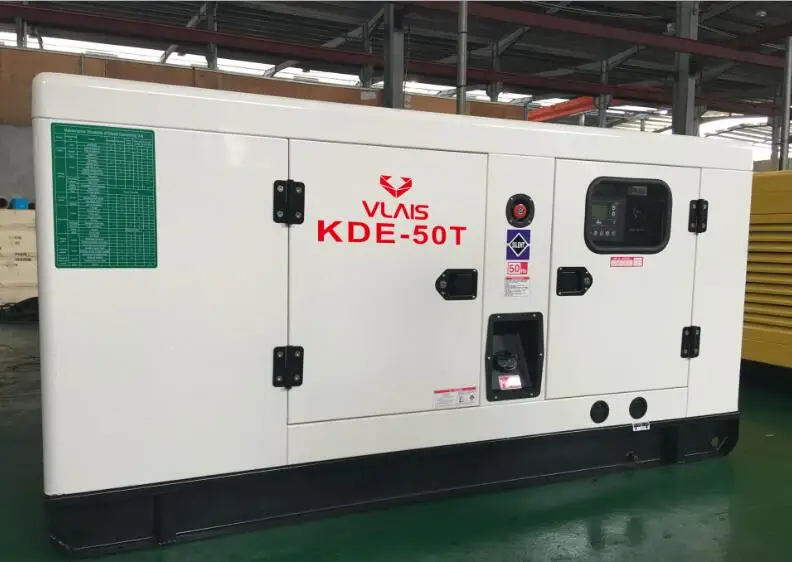

Product Description

Product Application

VLAIS CE Approved generator features with high-quality engine core, strong and stable output performance, lower fuel comsumption, silently working condition, Smart and automatic controller as operating protection. It is applied to all industrial and life such as hospital, school,hotel and production plant. necessary and fond. Have vlais have future.

SPECIFICATIONS FOR 62.5KVA DIESEL GENERATOR

Engine
Engine model
Kw/rpm
50/1500
No. of cylinders
Number
4
Rated Power
kw
50

Main performance parameters
Max.Output
kva
62.5
Rated Voltage/Frequency
v/hz
230/400V/50HZ
Bore*Stroke
mm
100*115

Hydraulic system
Fuel consumption at full load
g/kw.h
210
Dimension(L*W*H)
mm
2200*1000*1400
Net Weight
Kg
1310

Main Features

1) Stable and stronge power outlet-AVR and Original weifang engine
2) Lower fuel consumption-210g/kw.h Fuel consumption(g/kw.h) at full load
3) Silently working condition-100-105 DB at 7m
4) Professional operating manual and maintainance direction.
5) The quality have completely assurance-CE certificate

Certifications

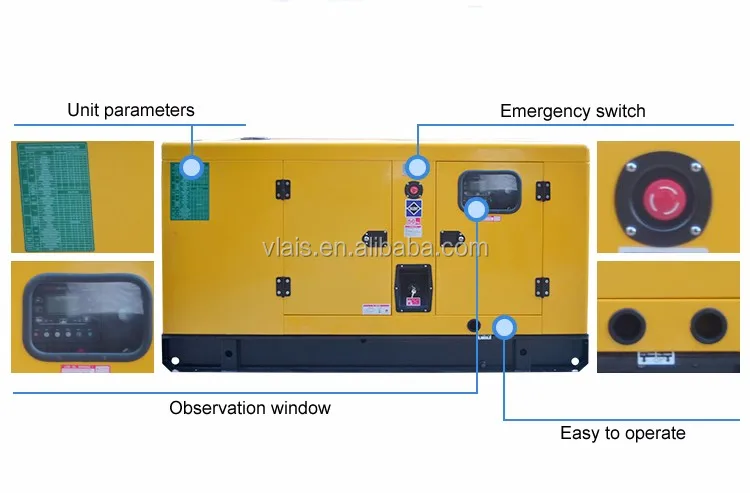

Detailed Images

Smart Controller

Name: Smartgen

Brand:

Original: China

In VLAIS Power, we are using generator controllers Integrating digital, Intelligent and network techniques are used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.

ATS

Name: Aisikai or Socomec

Original:Germany
As on-an automatic equipment for main/standby transfer power supply. ATS and diesel generator Composed to be emergency power system when the main Failure occurred. It is widely used in bank, hospital, telecommunication,hotel etc.

Brushless Alternator

Name:ST Alternator
Original: China
Brushless alternator allow our generators to have more effective output, Lower noise, longer lifespan and cheaper maintaining cost.

Main Features

Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
The set is designed for easy and convenient transportation and move.Round pulley is made by Z-iron differing from other pulley.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Inspect generator before leaving factory

It is regular and rules to make sure that every generator must be qualified before leaving factory.


Inspect generator and data analysis.

Inspect and data analysis 10 pieces of 25kva silent diesel generator for Clients from Turks and Caicos Islands.

Packing & Delivery
Packaging and Sea delivery
Size
2200(L)*1000(W)*1400(H)
Weight
1.31T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

50kva 40kw super silent diesel generator

91.8% Response Rate

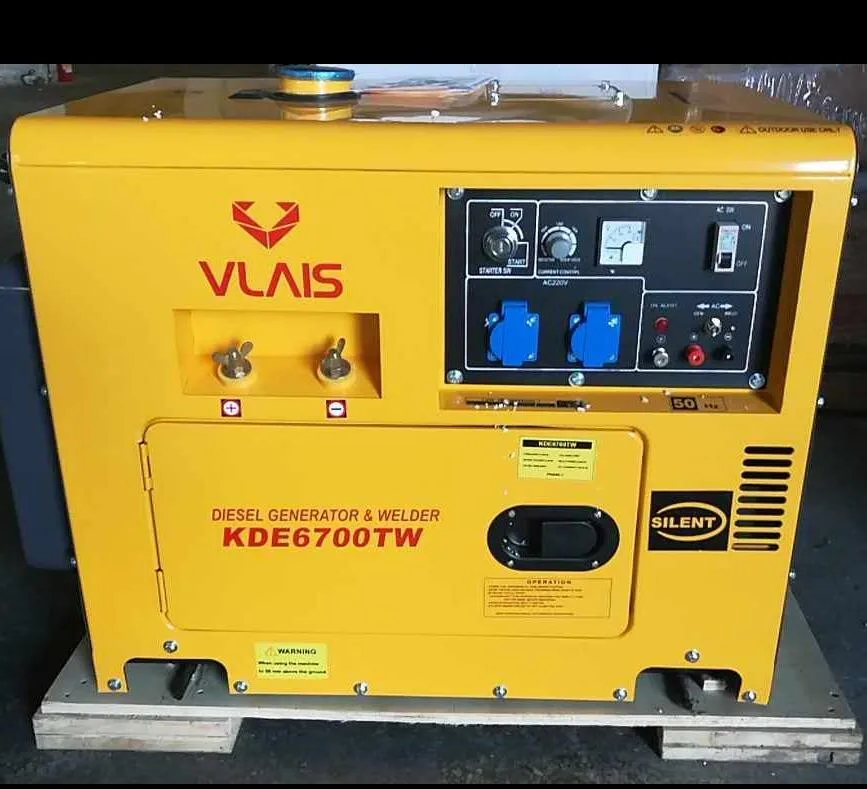

DC weld 180A Welding machine 2kw diesel generator
