Factory 40kw 50kva silent diesel generator set price 400V 3 phase generator electric start

FOB Reference Price:Get Latest Price
US $3,300-3,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VLAIS
Model Number:
VL-40
Output Type:
AC Three Phase
Speed:
1500rpm
Frequency:
50/60Hz
Rated Power:
40kw
Rated Voltage:
230/400V
Rated Current:
/
Engine:
4100ZD
Cylinder number:
4
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden package.
Port
Huangpu
Lead Time :
within 7-12 days after payment
Product description

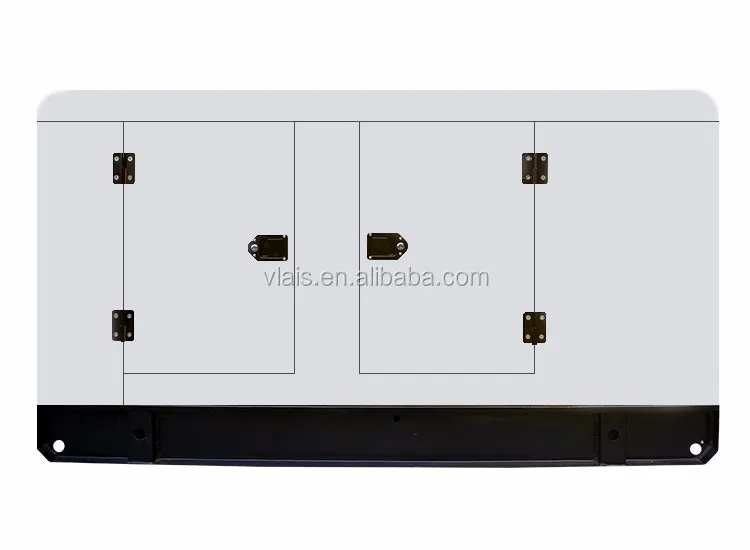

VL-40 40kw/50kva silent diesel generator
Rated output
40kw
Excitation
AVR
Max.output
50kva
Engine model
4100ZD
Rated voltage
230/400V
Cyliner number
4
Rated frequency
50/60Hz
Bore*stroke
100*115mm
Rated current
72.2A
Rated rotation speed
1500rpm
Power factor
0.8
Insulation grade
H
Fuel consumption
221g/kw.h
Compression ratio
19:1
Net weight
1300kg
Dimensions
2200*1000*1400mm

Technical Specification
* All copper coil, steady running.
* Easier and more convenient electric starter.
* New AVR(Automatic Voltage Regulator)stablizes the output power.
* Low oil level alarming system will automatically stop the generator when lube oil is less than the set value.
* As on-an automatic equipment for main/standby transfer power supply. ATS and diesel generator Composed to be emergency power system when the main Failure occurred. It is widely used in bank, hospital, telecommunication,hotel etc..

Product detailed
Company Information
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2200*1000*1400mm
Weight
1300kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
