3 phase electric low rpm generators 150 kva 200 kva 250 kva made in china

FOB Reference Price:Get Latest Price
$9,889.00 - $12,399.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
VLAIS
Model Number:
KDE-250T
Rated Power:
200kw
Output Type:
AC Three Phase
Rated Voltage:
110V/230/400V
Rated Current:
361A
Speed:
1500/1800rpm
Frequency:
50/60HZ
Engine Model:
6135BZLD
Cylinder number:
6
Fuel tank capacity(L):
150L
Bore*Stroke:
135*150mm
Exicitation mode:
Self-excitation and cinstant voltage
Starting system:
Electric strater
Certificate:
CE
Fuel Consumption(L/kw.h)at full load:
0.25L
Dimension(L*W*H):
4200*1400*2000mm
Net Weight:
4000KG
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden package
Port
Huangpu port Guangzhou
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Product Description

Product Application

VLAIS CE Approved generator features with high-quality engine core, strong and stable output performance, lower fuel comsumption, silently working condition, Smart and automatic controller as operating protection. It is applied to all industrial and life such as hospital, school,hotel and production plant. necessary and fond. Have vlais have future.

SPECIFICATIONS FOR 250 KVA DIESEL GENERATOR

Engine
Engine model
Kw/rpm
200/1500rpm/1800rpm
No. of cylinders
Number
6
Rated Power
kw
200

Main performance parameters
Max.Output
kva
250
Rated Voltage/Frequency
v/hz
110/230/400V/50~60HZ
Bore*Stroke
mm
135*150

Hydraulic system
Fuel consumption at full load
g/kw.h
212
Dimension(L*W*H)
mm
4100*1800*2000
Net Weight
Kg
4000

Main Features

1) Stable and stronge power outlet-AVR and Original weifang engine
2) Lower fuel consumption-210g/kw.h Fuel consumption(g/kw.h) at full load
3) Silently working condition-100-105 DB at 7m
4) Professional operating manual and maintainance direction.
5) The quality have completely assurance-CE certificate

Certifications

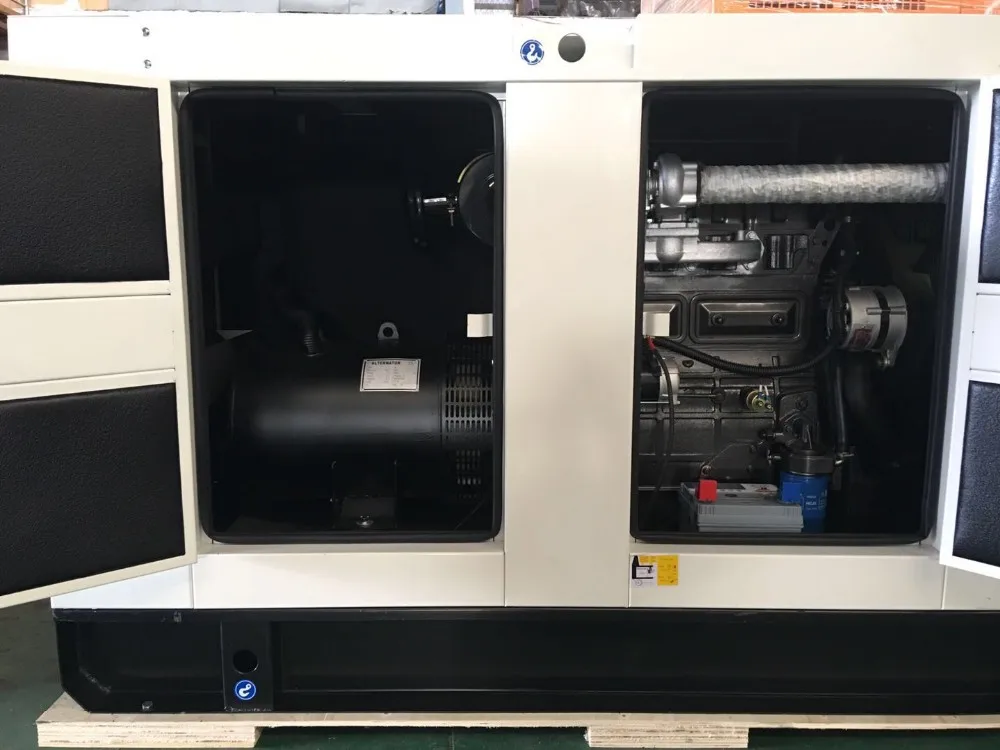

Detailed Images

Diesel Engine

Name: VLAIS

Brand: VLAIS

Original: China

In VLAIS Power, we cooperate with the top Engine manufacturer Cummins, Perkins, DEUTZ and Honda an so on Which will give you a diversified choice and global warranty service. You can find out the most value for money for ours..

ATS

Name: Aisikai or Socomec

Original:Germany
As on-an automatic equipment for main/standby transfer power supply. ATS and diesel generator Composed to be emergency power system when the main Failure occurred. It is widely used in bank, hospital, telecommunication,hotel etc.

Brushless All copper Alternator

Name: Shanghai Stamford Alternator
Original: China
Brushless All copper alternator allow our generators to have more effective output, Lower noise, longer lifespan and cheaper maintaining cost.

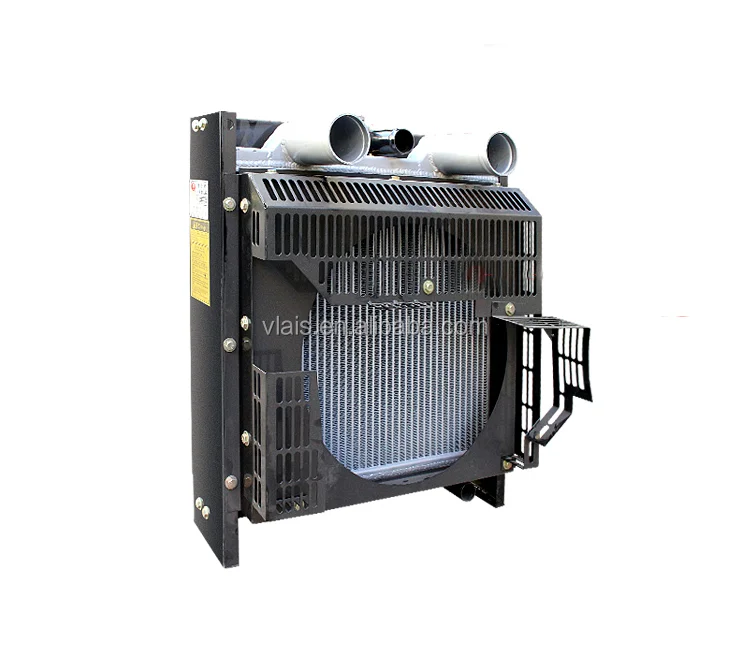

High Quality Corrosion Resistant Radiator

Name: Radiator
Brand:
Original:China
High quality and Low noise radiators with Anti-rust paint ensure that your machine will never Old, Streching, Impact Resistance, Mildew, Corrosion Resistance, No stink, Safety.

Application
Our Service

inspect generator before leaving factory


It is our regular and rules to make sure that every generator is qualified before leaving factory.


Inspect generator and data analysis.


Inspect and data analysis 10 pieces of 25kva silent diesel generator for Clients from Turks and Caicos Islands.

Packing & Delivery
Packaging
Size
4100 (L) * 1800(W) * 2000 (D)
Weight
4.0T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
