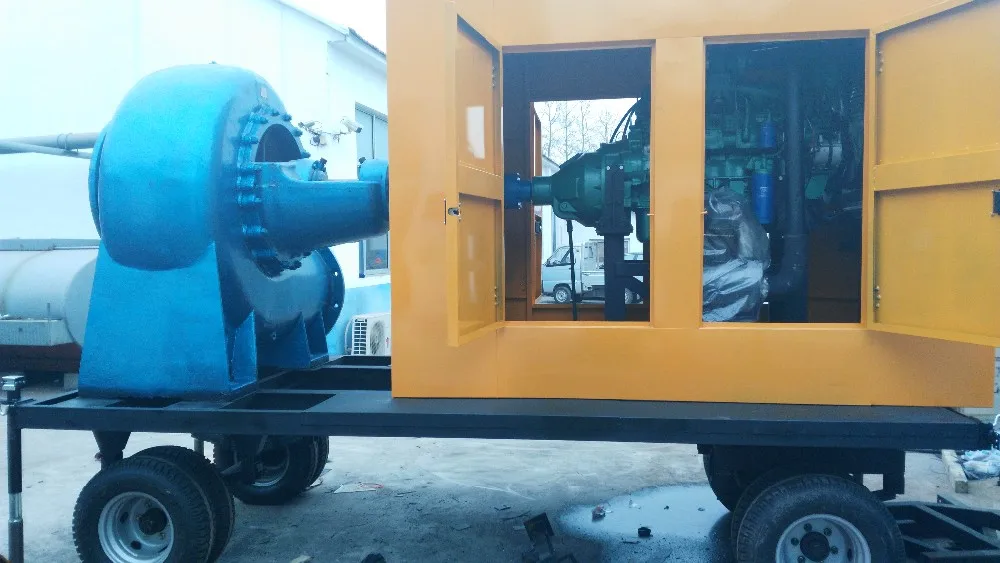

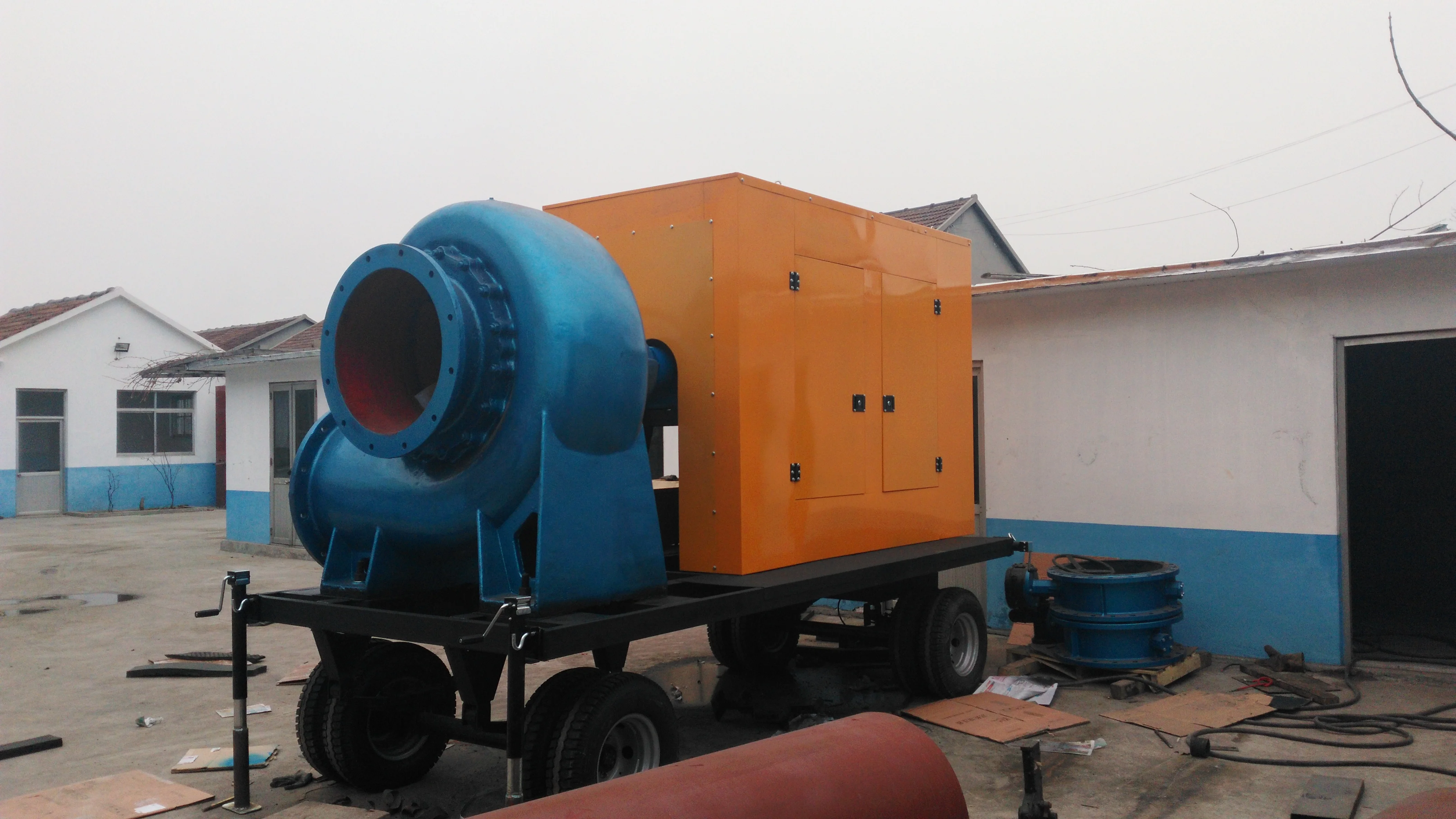

Large flow diesel engine driven agricultural irrigation water pump for farm

  • 1 - 4 Sets
    $1,870.00
  • >=5 Sets
    $1,580.00
Model Number:
UPC10Sh-19
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Material:
Metal
Diameter:
10 inch
Type:
Irrigation System
Usage:
Agriculture
Applicable Industries:
Farms, Construction works , Energy & Mining
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VLAIS
Feature:
Large flow
After-sales Service Provided:
No after-sales service, Free spare parts
Product name:
Large flow water pump
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden package
Port
Huangpu port Guangzhou
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

1.High efficiency motor

2.Brass plate embedded to avoid impeller jam.

3.Strict testing system:
a. high-pot testing b. water leakage testing
c. performance testing. d. routing inspection (IQC)


4. 12 months warranty

5. CE TUV RoHS ISO9001 ISO14001 certification

Material Of Water Pumps:

1.High efficiency motor with cold-rolled silicon steel sheet and 100% copper wire

2.CNC shaft with C&U bearing to guarantee the concentricity and balance

3.Electrophoretic pump body and motor body prevent from getting rust

4.Brass impeller to guarantee long time use

Structural Characteristics


1,Compact structure
Nice appearance,good stability and easy installation.

2,Operate steadily
The double suction impeller which is optimum and designed by computer,and has a large inlet flowing area.The pump operate with no vortex,operate smoother and have remarkable erosion-resistant ability and high efficiency.

3,Bearing
Excellent bearing is used to assure the steady operation,low noise,long service life.Grease lubrication and closed structure is used.If thin oil lubrication structure is needed,a constant level oil cup shall be equipped.

4,Shaft seal
Mechanical seal or packing seal shall be used.These two kinds of seal are all installed in the removable packing box,which is convenient to assembly and maintenance.The packing gland of pump is removable and open,which assures enough room for maintenance and repair.


5,Impeller
The latest technology of Sanlian Company is adopted as well as the best hydraulic model,which makes the double suction impeller can balance the axial force automatically.

6,Shaft
Shaft is completely sealed without contacting the medium or corrosion.Pump rotor part shall be installed with elastic prestressing force,which makes the installation and disassembly much easier and more convenient.

7,Casing
For the pump of high head,double split casing passage is adopted,which counteracts most of the radial force and prolongs the life of bearing on two sides.

Certifications
Packing & Delivery
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company

Guangdong Vlais Industrial Co., Ltd. Guangdong Vlais Industrial Co., Ltd. is an international large-scaled enterprise, which integrates special production and processing of products such as power generator set, architectural machinery, agricultural machinery, woodworking machinery, garden machinery, electric tool and their parts, and has a set of complete quality management system.Founded in 1998, our company, with its headquarters in Guangzhou (one of the cities with the strongest economic strength and development vitality in China), is a comprehensive company dedicating itself to the research, development and production of electromechanical products.
